Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of tea packet packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable tea packet packing machine made in China here from our factory.
DETAILED DISPLAY
The film feeding system installs tea bag filter membrane rolls and continuously supplies packaging materials through an automatic feeding mechanism.
01
The equipment is equipped with a film positioning and adjustment structure to maintain the film's centered position in real time during packaging. This reduces problems such as uneven sealing and bag deformation caused by film misalignment.
02
A precision cutting knife is used to continuously cut tea bags. The cutting speed is controlled synchronously with the packaging speed to ensure that each triangular tea bag is the same size and to reduce the formation of rough edges.
03
The main body of the tea packet packing machine features a high-strength frame design, enhancing stability during high-speed operation. The surface is treated for easy cleaning and maintenance.
04
Hot Tags: tea packet packing machine, China tea packet packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Tea Packet Packing Machine |
|
Capacity |
30-70 bags/min |
|
Filling Range |
1-5g/bags |
|
Size |
(L)50-80mm(W)140-180mm |
|
Weight |
400kg |
|

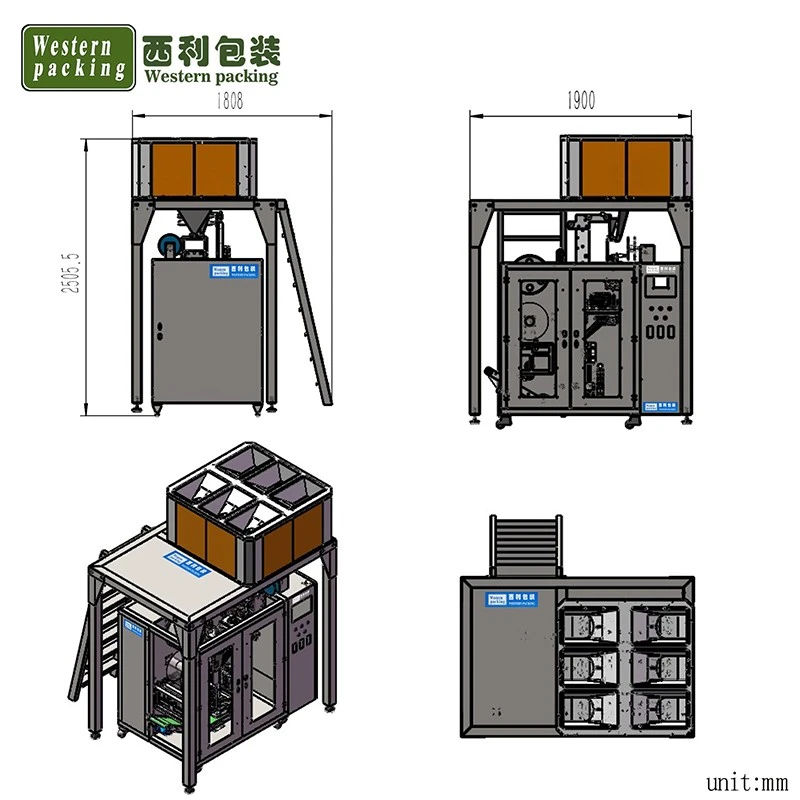

Dimension(L*W*H) |
1600*1006*2300mm |
TEA PACKET PACKING MACHINE

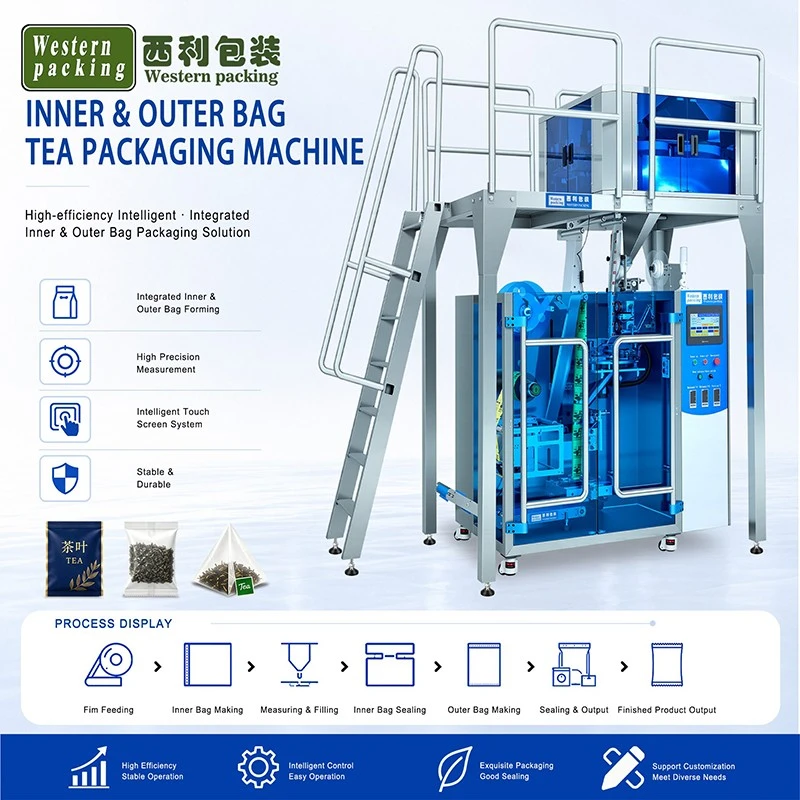

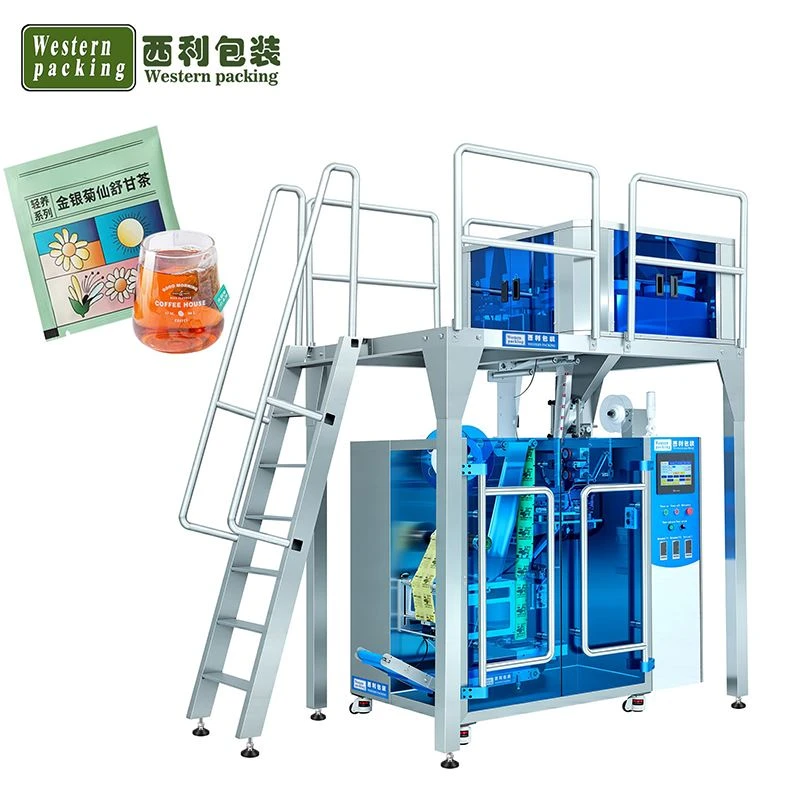

The triangular tea packet packing machine is an automated packaging device specifically designed for the production of three-dimensional triangular tea bags. It is suitable for various tea products, including green tea, black tea, flower tea, fruit tea, herbal tea, and granular tea. The equipment automatically completes a continuous packaging process, including tea weighing, bag making, filling, sealing, bag cutting, and finished product output.
Utilizing triangular three-dimensional bag forming technology, the machine provides ample space for the tea leaves to expand within the bag, improving the steeping effect during brewing. The machine supports nylon mesh, non-woven fabric, and other filter packaging materials. A precise weighing system ensures consistent weight for each bag of tea, while PLC control and servo drive technology enable high-speed, continuous, and stable tea bag production.
PRODUCT FEATURES
1. Triangular Three-Dimensional Forming Structure: Utilizing a specialized triangular bag forming device, the tea bags form a stable three-dimensional spatial structure.

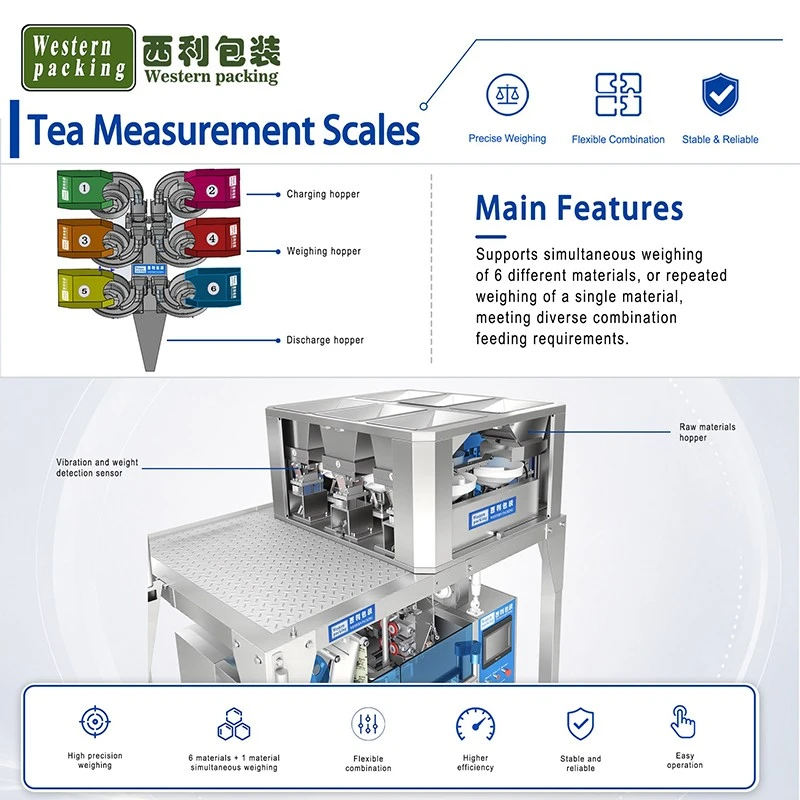

2. Precise Tea Metering System: The equipment is configured with different metering methods based on the characteristics of the tea, enabling quantitative filling. The metering system operates stably, reducing errors caused by manual weighing, ensuring consistent weight for each tea bag, and improving raw material utilization.
3. Stable Film Material Conveying System: Employing an automatic feeding structure to control the packaging film's running speed, and maintaining stable film material conveying through a tension adjustment mechanism. Even during long-term continuous operation, it reduces problems such as film deviation and inconsistent bag lengths.
