Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of pyramid tea bag packing machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable pyramid tea bag packing machine made in China here from our factory.
DETAILED DISPLAY
The hopper is made of food-grade SUS304 stainless steel, and the inner wall is finely polished to reduce tea residue and facilitate disassembly and cleaning.
01

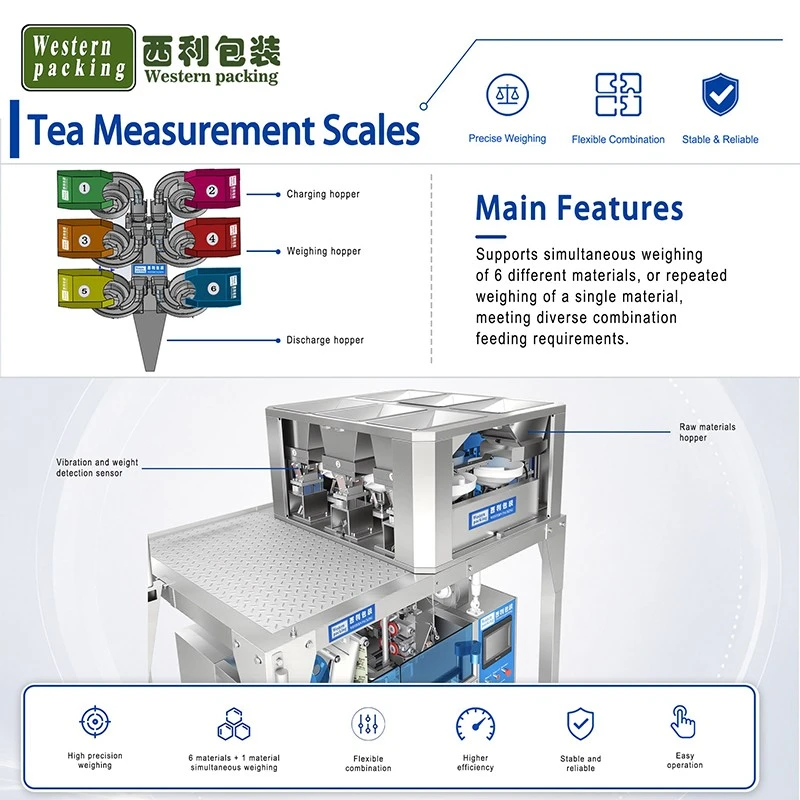

Each weighing channel is equipped with an independent load cell to detect the weight of the material in real time and automatically adjust the feeding rate according to the set parameters.
02
The pyramid tea bag packing machine uses a precision-controlled feeding mechanism to adjust the feeding speed according to the material's condition.
03

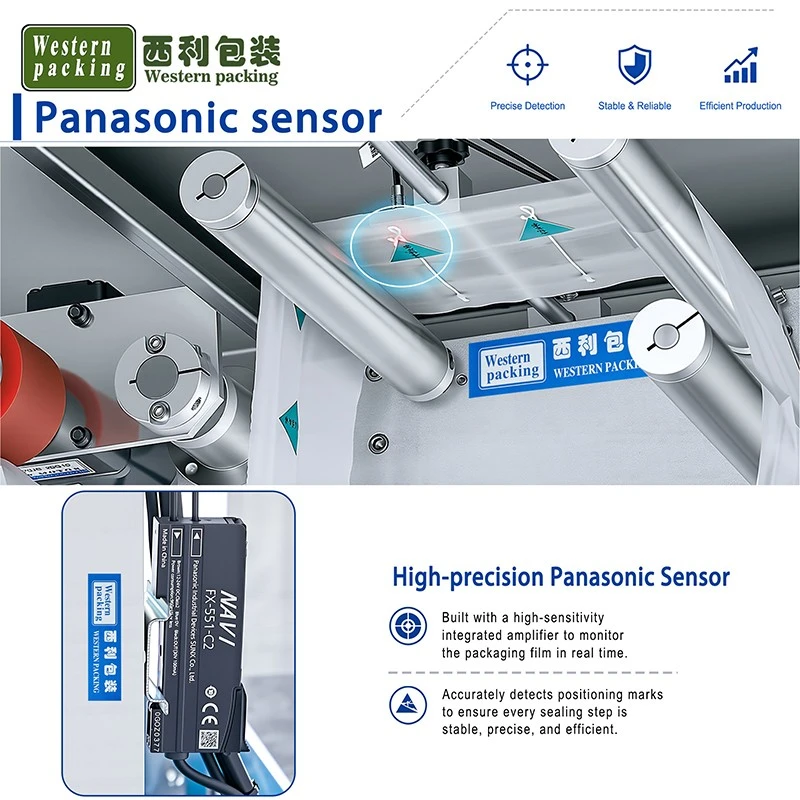

The equipment is equipped with an automatic independent film feeding mechanism for the continuous conveying of inner bag filter material and outer bag packaging film.
04
Hot Tags: pyramid tea bag packing machine, China pyramid tea bag packing machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Pyramid Tea Bag Packing Machine |
|
Capacity |
40-60 bags/min |
|
Dosage |
1-10g |
|
Packing Material |
Nylon mesh, non-woven fabric, corn fiber, and other ultrasonic sealing materials |
|
Voltage |
220/380V 50-60Hz |

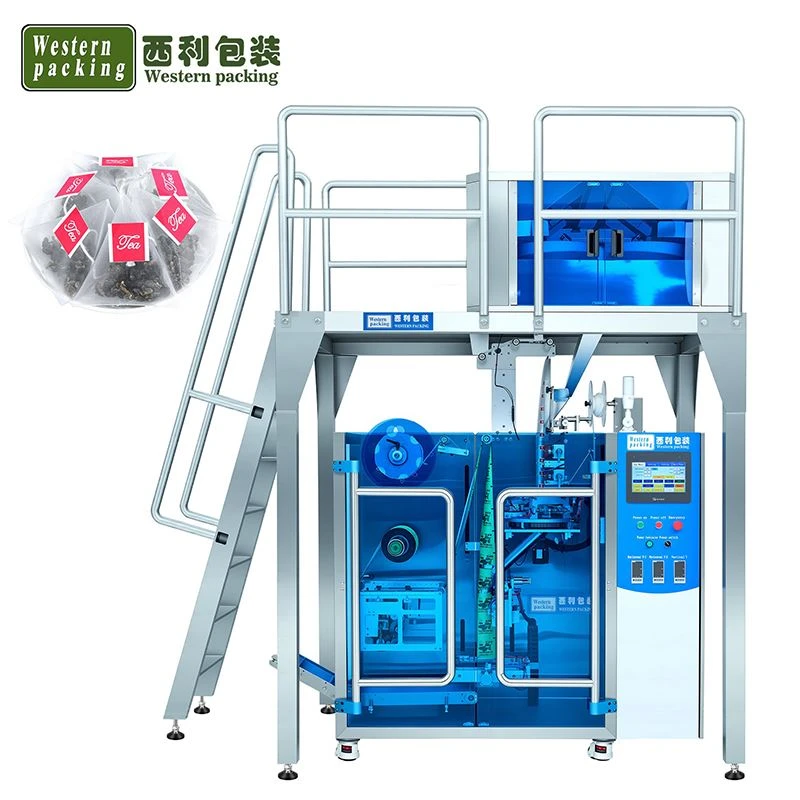

PYRAMID TEA BAG PACKING MACHINE

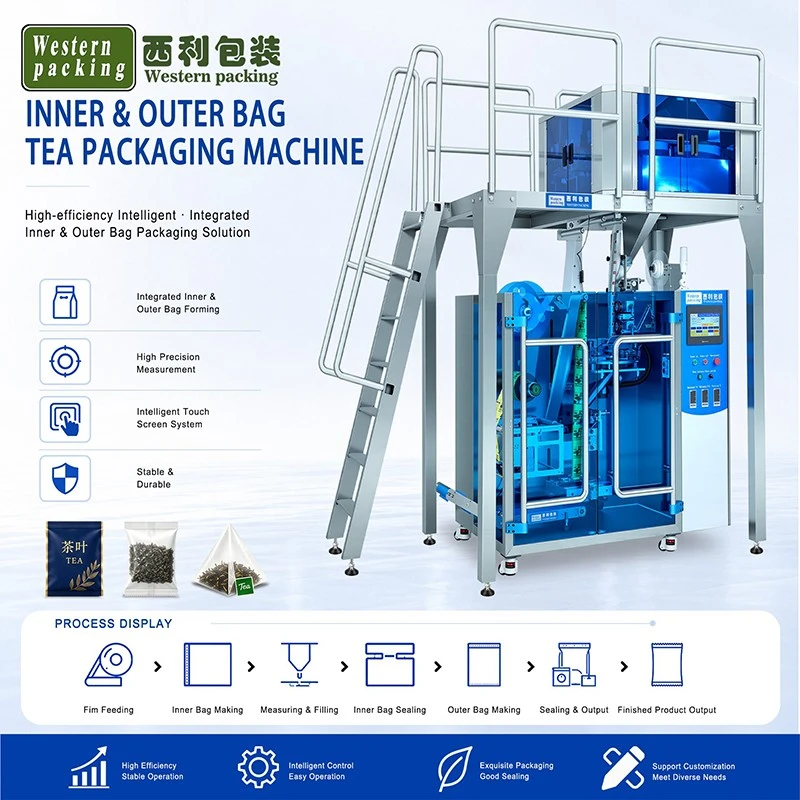

The integrated inner and outer pyramid tea bag packing machine mainly consists of an automatic feeding system, a multi-material weighing system, an inner bag packaging system, a hanging label system, an outer bag packaging system, an automatic sealing system, a film conveying system, and an intelligent control system.
During operation, tea raw materials enter the weighing system and are precisely proportioned according to set parameters. For compound tea beverages, the equipment can simultaneously weigh different materials independently through multiple weighing channels, then combine them according to the program to form a stable and consistent product formula.
WORKING PRINCIPLE
This integrated tea packaging machine uses an automated control system to complete the entire process of tea weighing, inner bag packaging, and outer bag packaging. After the tea enters the storage hopper, a multi-channel weighing system accurately measures the quantity, supporting simultaneous weighing of six different materials or repeated weighing combinations of a single material to meet the needs of various tea formulas.

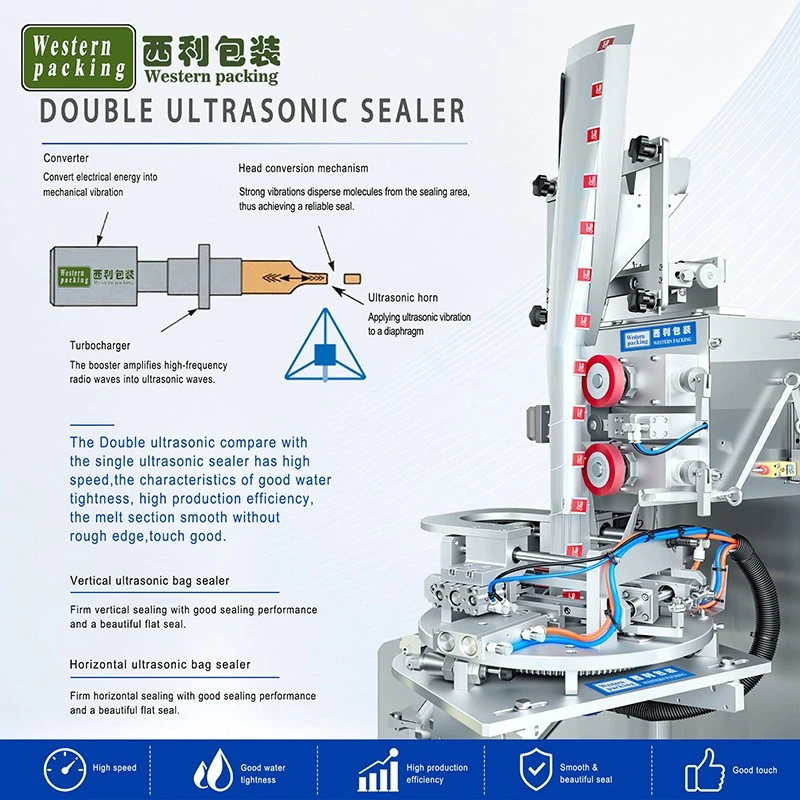

The weighed material then enters the inner bag packaging mechanism, where the packaging material undergoes automatic film feeding, forming, filling, and heat sealing to complete the tea bag production. Subsequently, the inner bag automatically enters the outer bag packaging system, where outer film forming, sealing, and cutting complete the secondary packaging. The entire machine uses PLC and servo control to achieve precise synchronous operation of all mechanisms, ensuring stable packaging speed, accurate measurement, and secure sealing.
