Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of flower tea packaging machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable flower tea packaging machine made in China here from our factory.
DETAILED DISPLAY

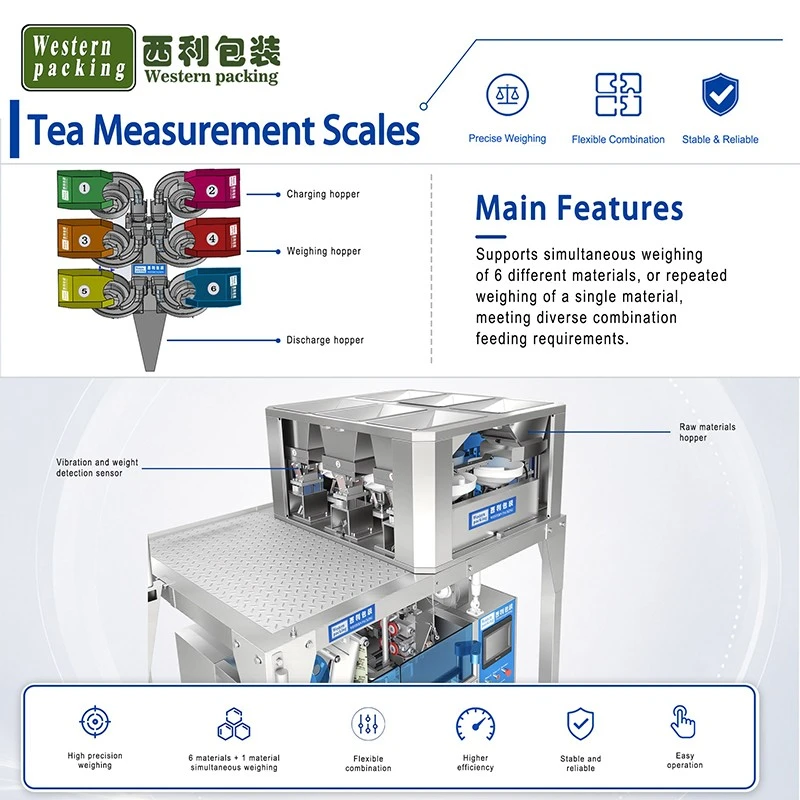

The metering mechanism adjusts according to the different densities and flowability of tea leaves. It controls the amount of tea leaves released each time, ensuring each bag maintains a uniform weight.
01
The forming mold determines the final shape of the triangular tea bag. A precise guiding structure ensures the filter membrane folds along a fixed path, guaranteeing spatial stability within the triangular bag and reducing bag shape deviation.
02
The flower tea packaging machine feeding assembly features a smooth flow design, allowing tea leaves to quickly enter the bag. This reduces clogging and residue, especially for lightweight tea leaves and fragmented materials.
03
The control system coordinates ultrasonic sealing, metering, feeding, and bag cutting. The touchscreen displays the operating status in real time, facilitating operator adjustments to equipment parameters and production management.
04
Hot Tags: flower tea packaging machine, China flower tea packaging machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Flower Tea Packaging Machine |
|
Capacity |
30-70 bags/min |
|
Filling Range |
1-5g/bags |
|
Size |
(L)50-80mm(W)140-180mm |
|
Weight |
400kg |
|
Dimension(L*W*H) |
1600*1006*2300mm |

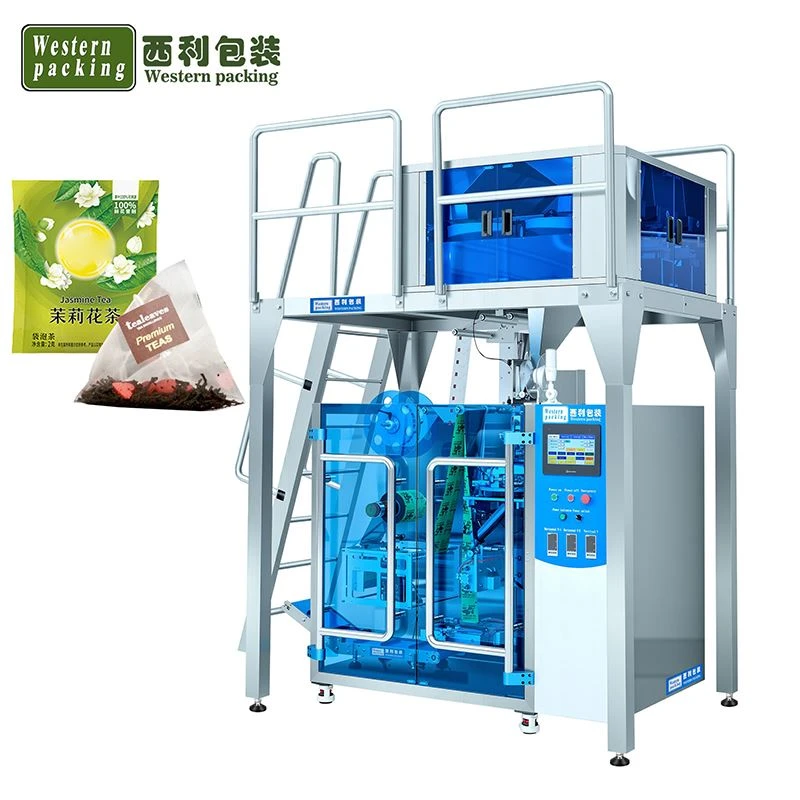

FLOWER TEA PACKAGING MACHINE

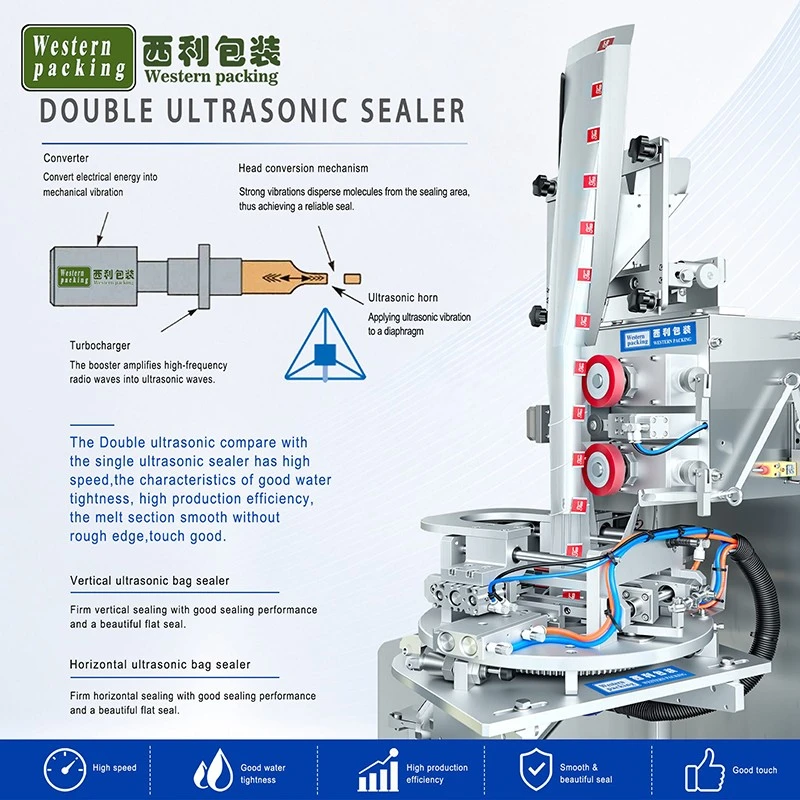

This flower tea packaging machine uses an ultrasonic sealing system as its core component. Through the coordinated operation of its mechanical structure and intelligent control system, it achieves continuous production of triangular tea bags.
During production, the equipment automatically feeds a filter membrane, which is folded into a triangular three-dimensional structure by a forming mechanism. The tea leaves, after being weighed and controlled by a metering device, enter the bag. Subsequently, the ultrasonic sealing head performs high-frequency vibration welding on the packaging material, quickly bonding the upper and lower membranes to form a strong seal.
Unlike traditional heat-sealing equipment, this machine does not rely on continuous high-temperature heating to achieve a seal, making it more suitable for tea bag products with high requirements for sealing quality, packaging appearance, and material protection.
PRODUCT ADVANTAGES
1. More stable continuous production capacity: The equipment's various systems employ synchronous control, ensuring coordinated operation of feeding, filling, sealing, and bag cutting.
2. Reduced packaging material waste: Ultrasonic sealing eliminates the need for large-area heating, reducing film damage caused by abnormal temperatures.
3. More environmentally friendly operation: Ultrasonic sealing eliminates the need for continuous heating of the sealing blade, reducing energy consumption during the heating process.
