Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of high speed cartoning machine in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable high speed cartoning machine made in China here from our factory.
DETAILED DISPLAY

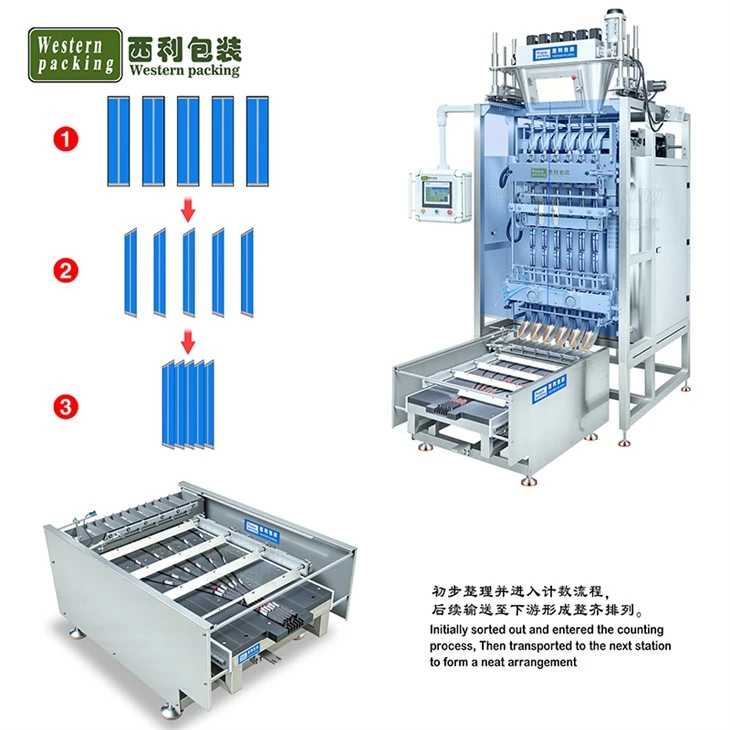

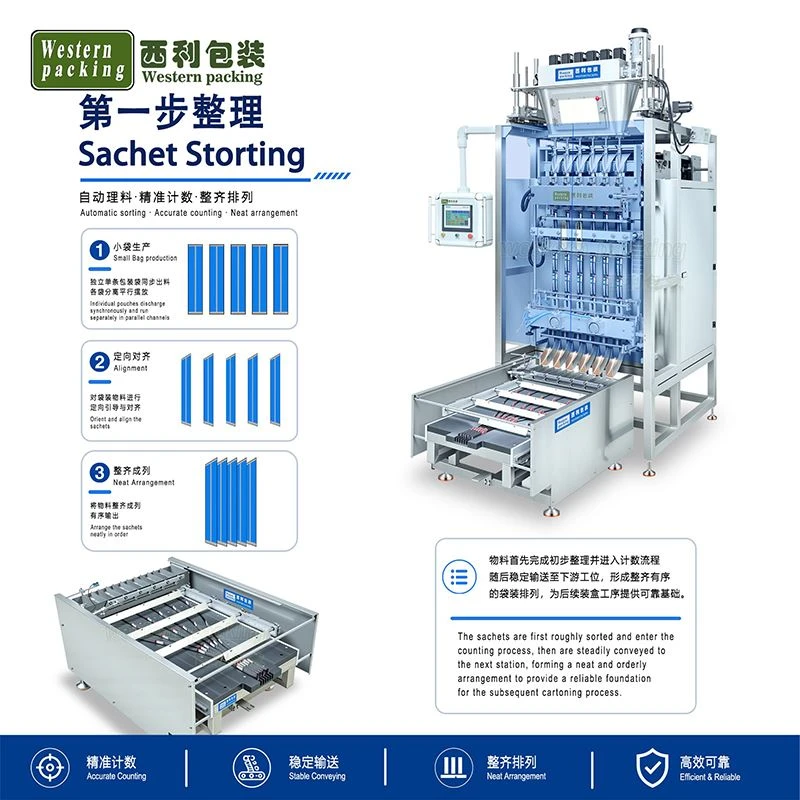

The sachets will be automatically sorted by the sorting structure, rearranging scattered or overlapping sachets into a uniform orientation and single column.
01

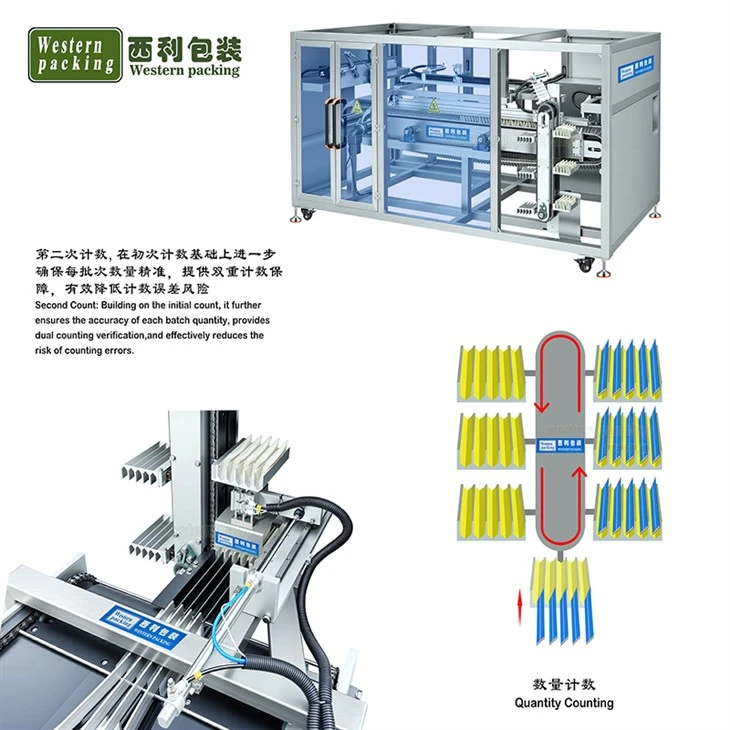

The high-precision counting device uses a highly sensitive photoelectric sensor to count each bag of products individually, and automatically completes the grouping settings in the system.
02
The high speed cartoning machine automatically picks up cartons from the carton storage bin and completes the opening action, without any human intervention.
03
After the counting and grouping are completed, the small bags are pushed into the carton in one go by the pusher mechanism.
04
Hot Tags: high speed cartoning machine, China high speed cartoning machine manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Product name |
High Speed Cartoning Machine |
|
Product size |
According to the actual situation |
|
Sorting bag size |
10-200mm |
|
Packing speed |
15-30 boxes/min |
|
Use air supply |
0.5-0.7Mpa |
|
Carton length |
130-230mm |
|
Carton width |
50-200mm |
|
Carton height |
20-90mm |
HIGH SPEED CARTONING MACHINE

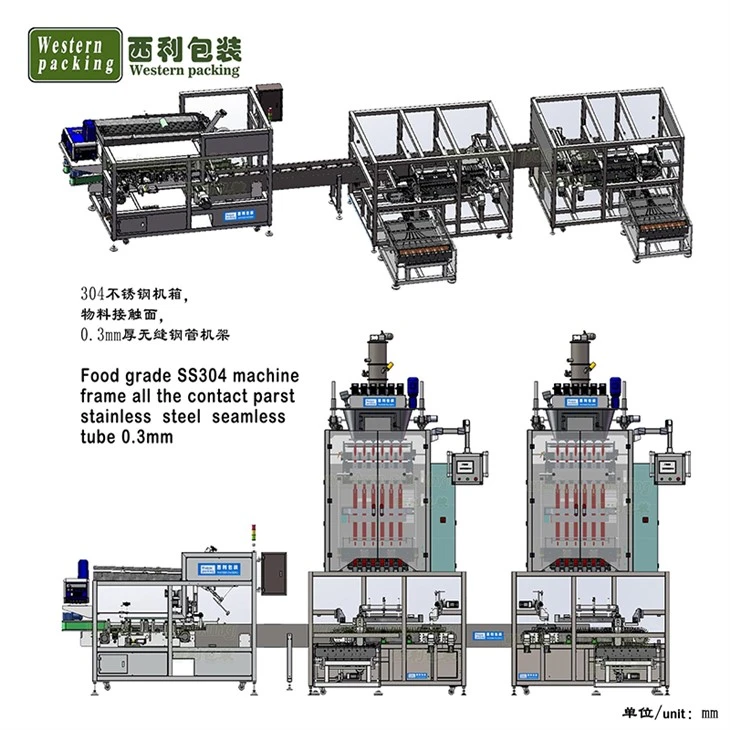

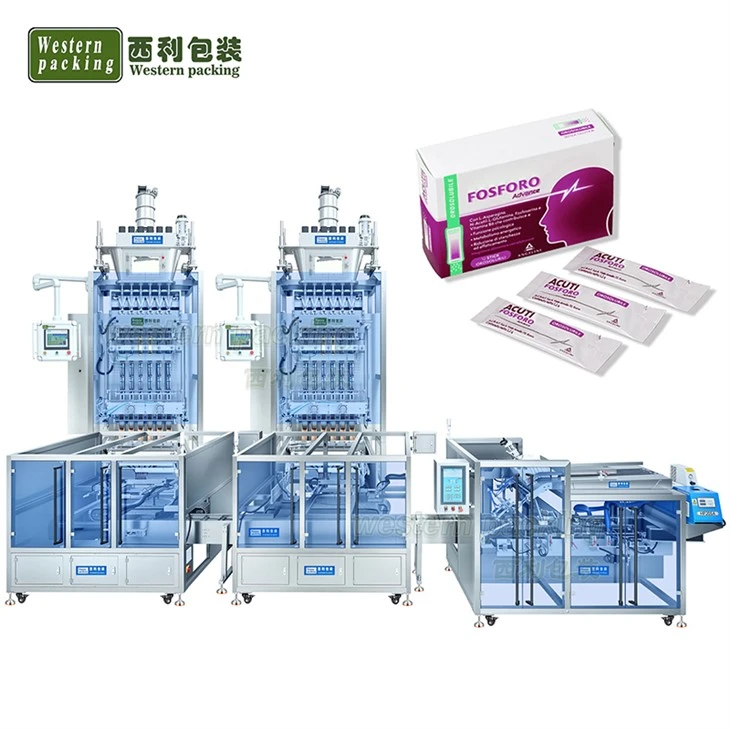

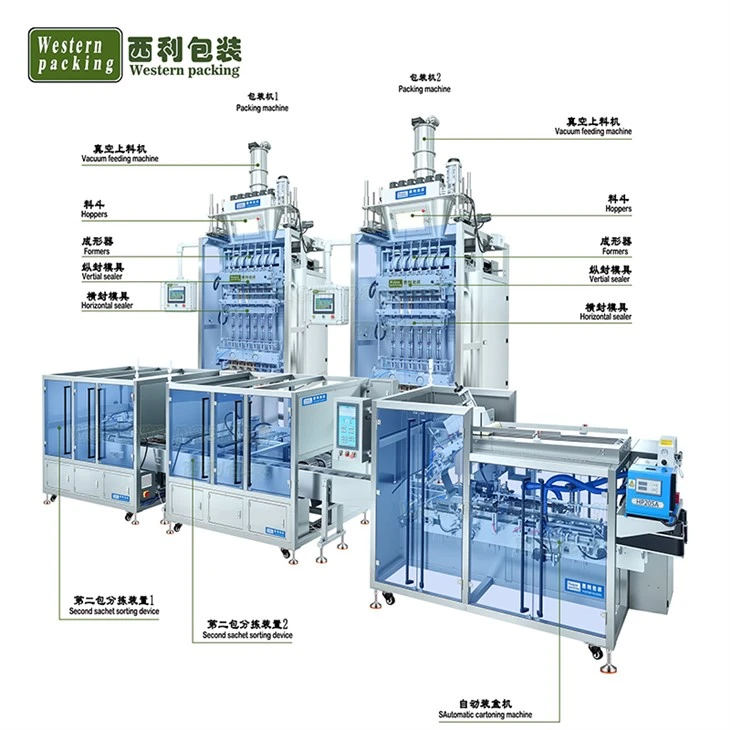

The high speed cartoning machine is an automated back-end packaging solution for production lines, capable of collecting, sorting, and filling small bags of products into cartons. It is widely used after multi-channel packaging machines to achieve fully automated secondary packaging.
This machine is suitable for numerous industries such as food, coffee, condiments, beverage powders, pharmaceutical powders, and nutritional supplements, helping manufacturers reduce labor costs while improving packaging consistency and production efficiency.
With its stable servo drive structure and intelligent PLC control system, this machine ensures high-speed carton filling, precise positioning, and reliable operation.

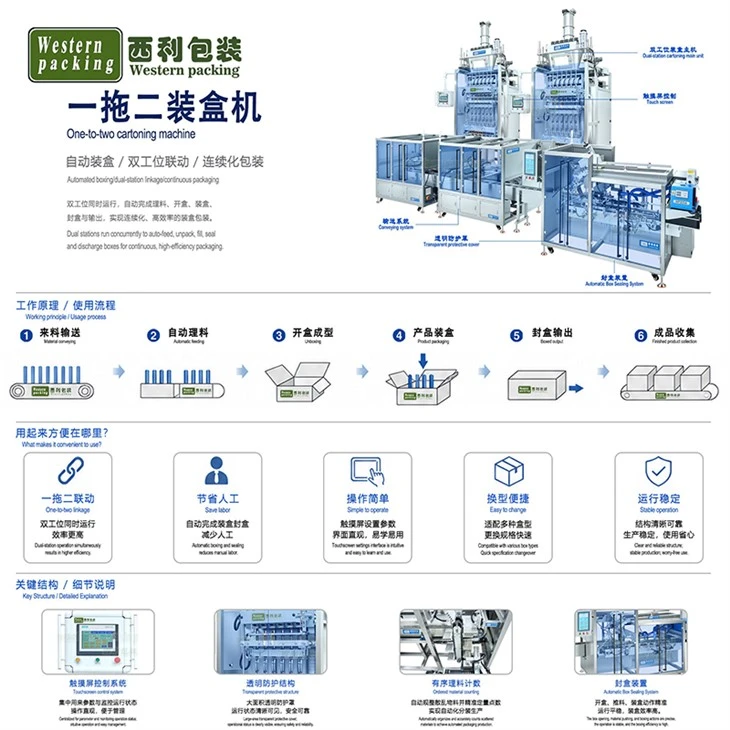

WORKING PRINCIPLE

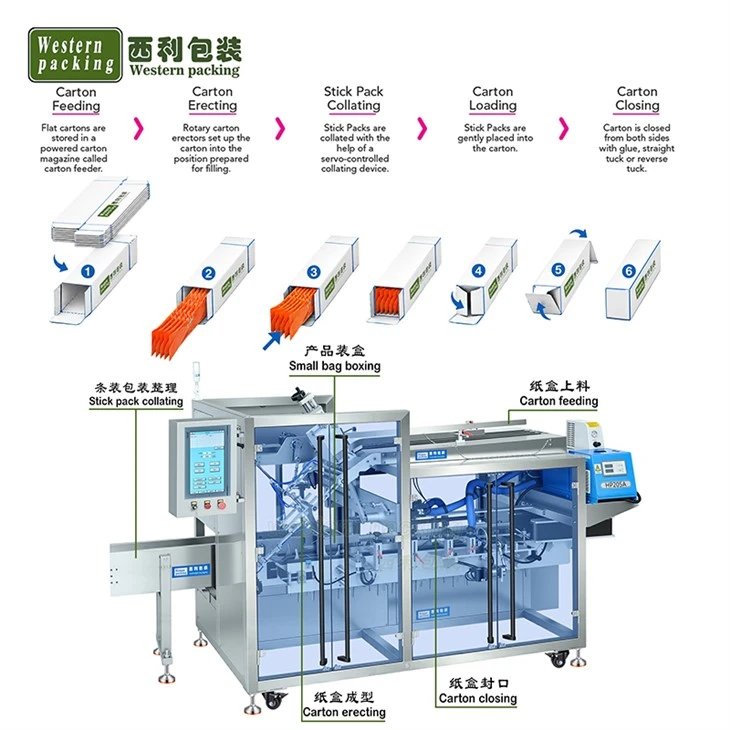

1. Automatic Carton Feeding and Opening: Cartons are automatically picked up from the hopper, unfolded, and shaped before entering a stable conveyor track.
2. Small Bag Arrangement and Counting: Small bags are automatically arranged via the conveyor system and accurately counted and grouped according to a set quantity.
3. Product Buffering and Alignment: Grouped products enter the buffer area, synchronized with the carton feeding cycle, ensuring continuous and stable material supply.
4. Servo Pushing into Cartons: A servo pushing mechanism accurately pushes small bags into the cartons, ensuring accurate positioning, preventing stacking, and preventing damage.

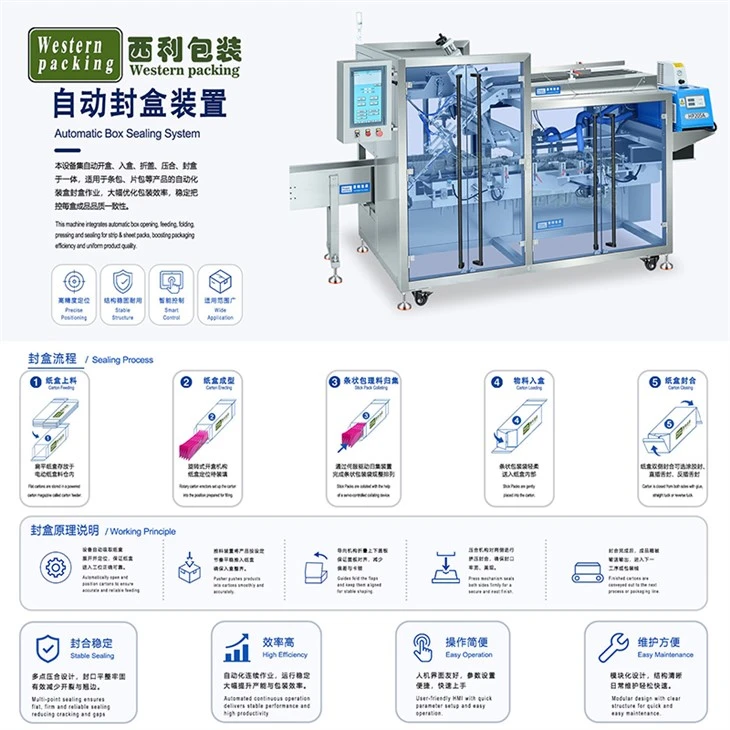

5. Carton Arrangement and Sealing: After packaging, automatic arrangement is performed, with options for tongue-and-groove sealing or hot melt glue sealing.
6. Finished Product Output and Inspection: Finished products are automatically conveyed out, and abnormalities such as missing bags and empty cartons are detected and rejected.
