Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of double cone blender mixer in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable double cone blender mixer made in China here from our factory.
DETAILED DISPLAY

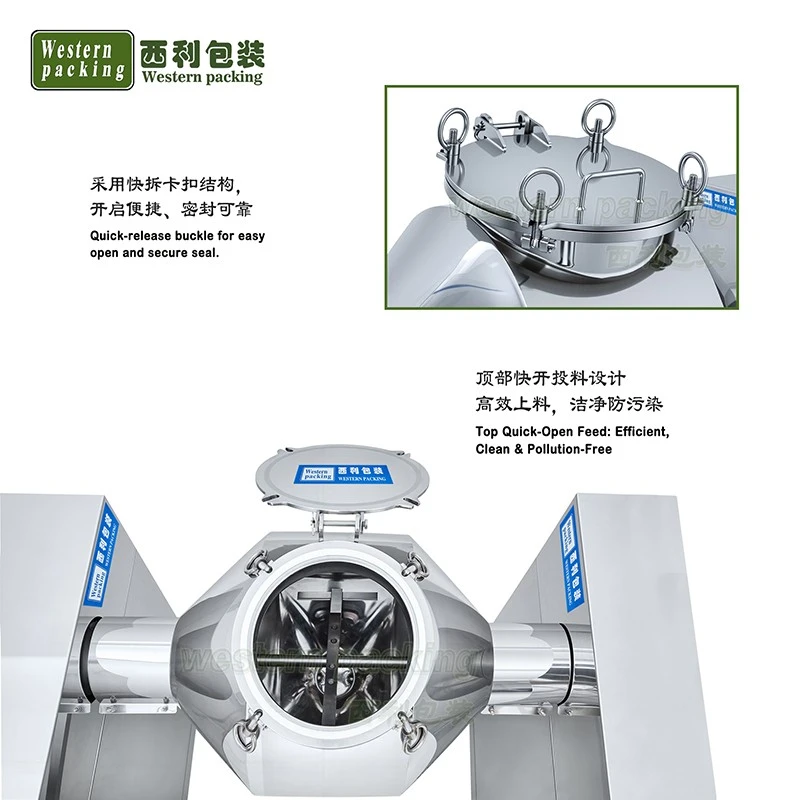

The top inlet features a clamp-style locking mechanism for quick opening and closing, while a sealing ring effectively prevents powder leakage.
01

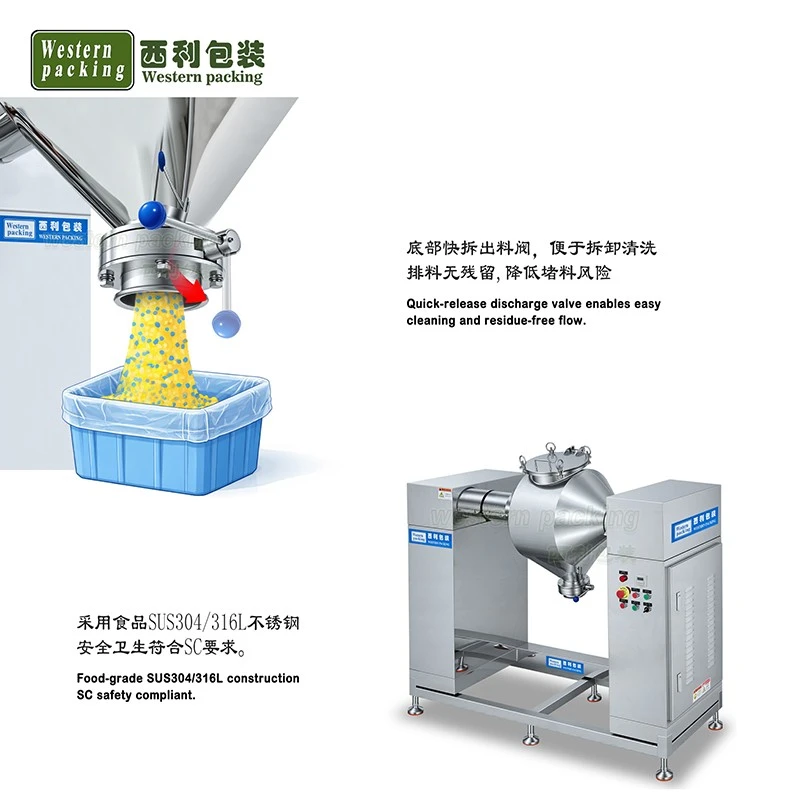

The bottom discharge outlet is equipped with a quick-release discharge valve, which accelerates the unloading process, simplifies valve disassembly, and reduces the risk of clogging.
02

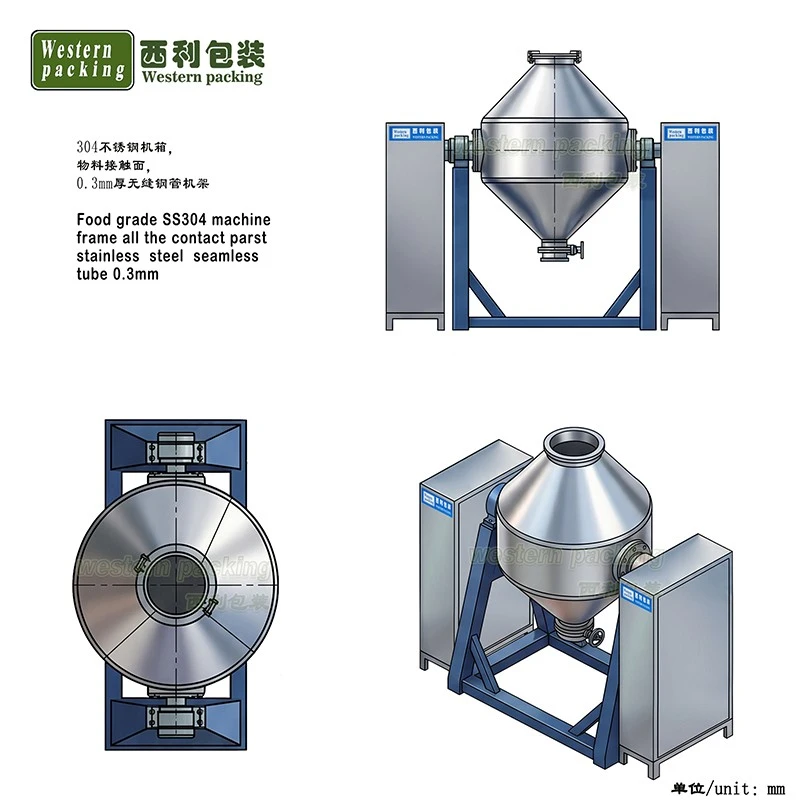

The equipment is constructed from food-grade SUS304/316L stainless steel, offering enhanced corrosion resistance.
03
The double cone blender mixer equipped with reinforced support legs to provide stable support during operation and reduce vibration.
04
Hot Tags: double cone blender mixer, China double cone blender mixer manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Double Cone Blender Mixer |
|
Model |
WP-V-500 |
|
Max Capacity (kg) |
200 |
|
Rotor Speed (r.p.m) |
15 |
|
Motor Power(kw) |
1.5 |
|
Dimension(mm) |
1910*600*1600 |
|
Weight(kg) |
500 |
DOUBLE CONE BLENDER MIXER
Mixing equipment must not only ensure uniform material blending but also offer ease of operation and maintenance. This double cone blender mixer is designed with these requirements in mind; the layout of every component—from the inlet to the discharge valve—aims to streamline production processes and minimize unnecessary downtime.
The mixing chamber rotates at a steady speed, allowing materials to circulate naturally within the vessel. Thanks to the gentle mixing action, the equipment is particularly well-suited for products that require both high mixing uniformity and the preservation of the material's original particle integrity.
For manufacturers with continuous production lines, this mixer can be integrated with vacuum loaders, screw conveyors, storage silos, or packaging machines to create a more efficient production workflow.
WORKING PRINCIPLE

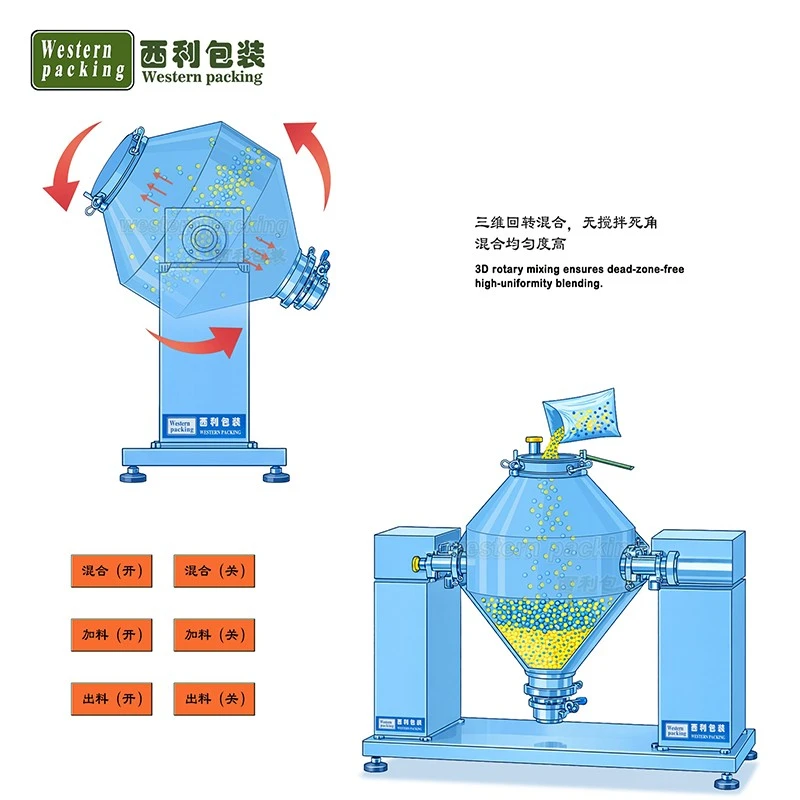

After the material is loaded through the top inlet, the mixing drum begins to rotate, driven by the motor and gear reducer.
The three-dimensional rotating agitation mechanism inside the drum works in concert with the rotating drum itself, causing the material to move continuously in multiple directions. The material is lifted, dispersed, folded, and redistributed throughout the mixing chamber, thereby minimizing material accumulation and enhancing mixing efficiency.
