Guangzhou Western Packing Co., Limited is one of the leading manufacturers and suppliers of cone blender mixing powder and grain in China. We are committed to providing high quality customized service to global clients. Welcome to wholesale durable cone blender mixing powder and grain made in China here from our factory.
DETAILED DISPLAY

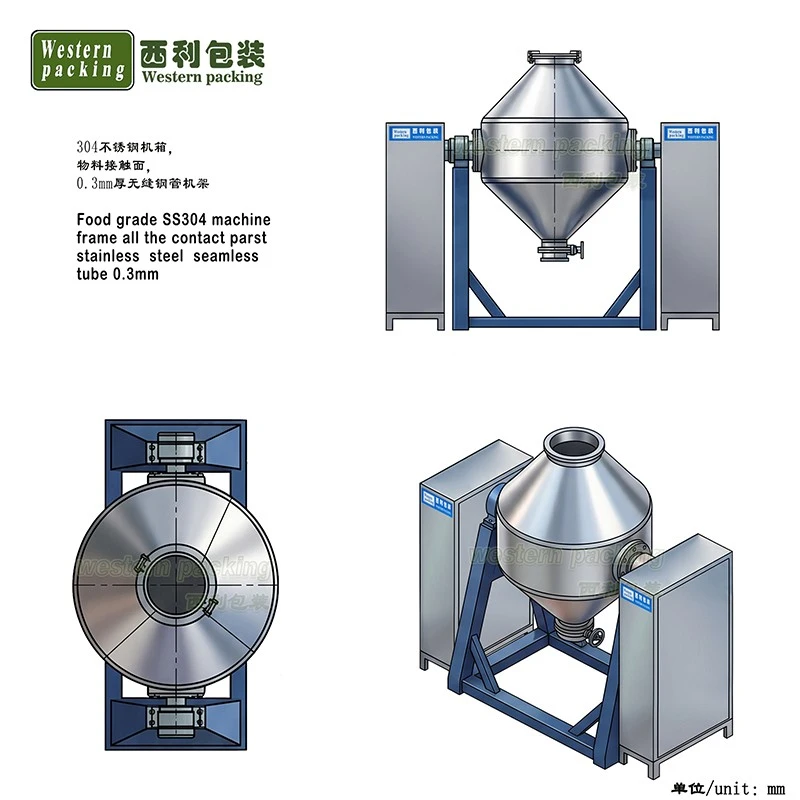

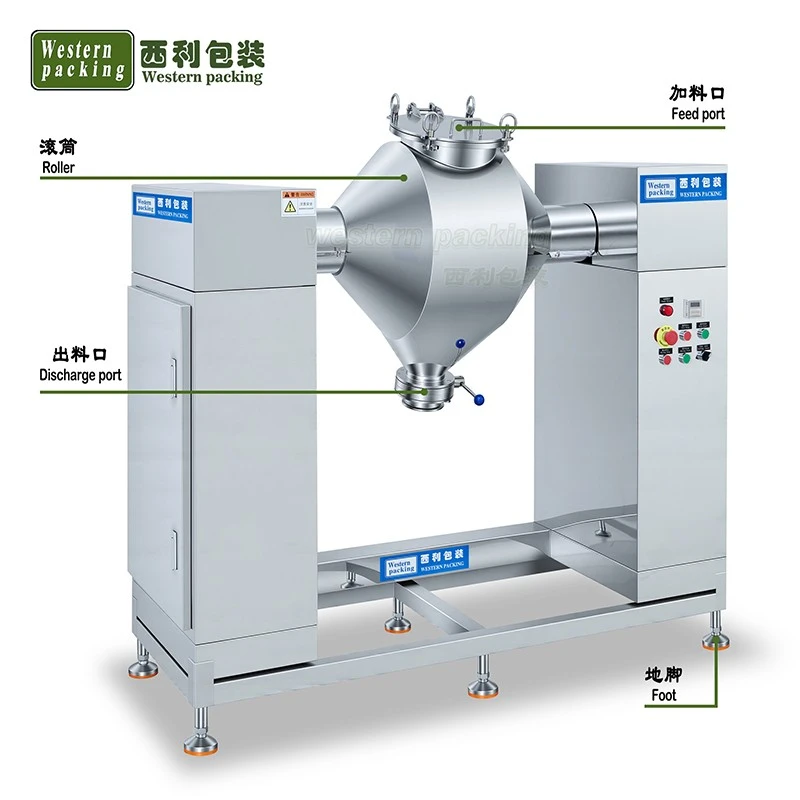

The cylinder adopts a double-cone structure design, which enables the material to be tumbled and exchanged evenly during rotation.
01

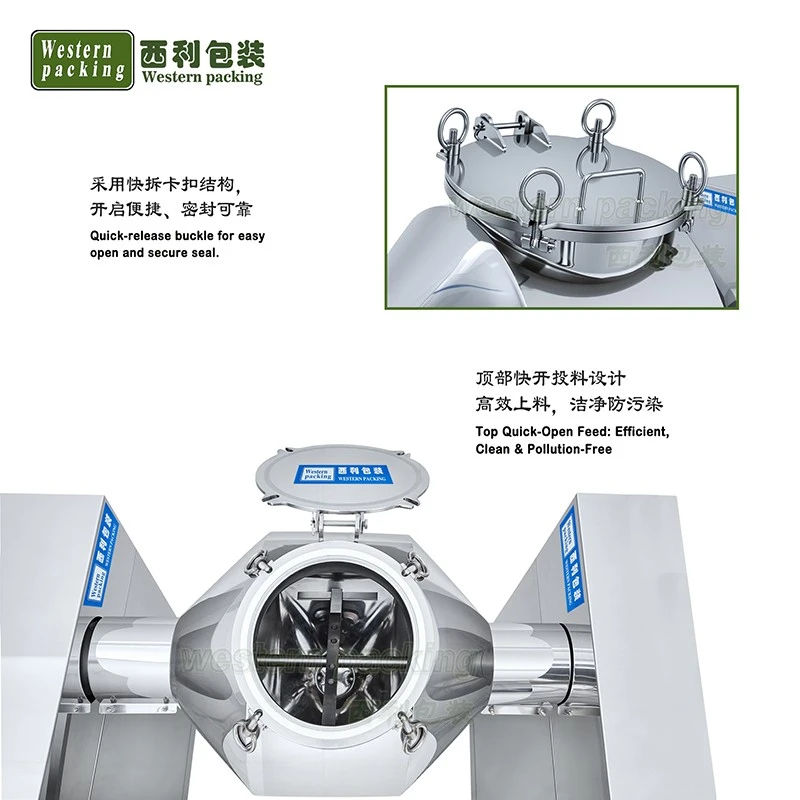

The feed inlet adopts a quick-opening cover structure, which shortens the loading and cleaning time, and the sealing design effectively reduces dust leakage during the mixing process.
02

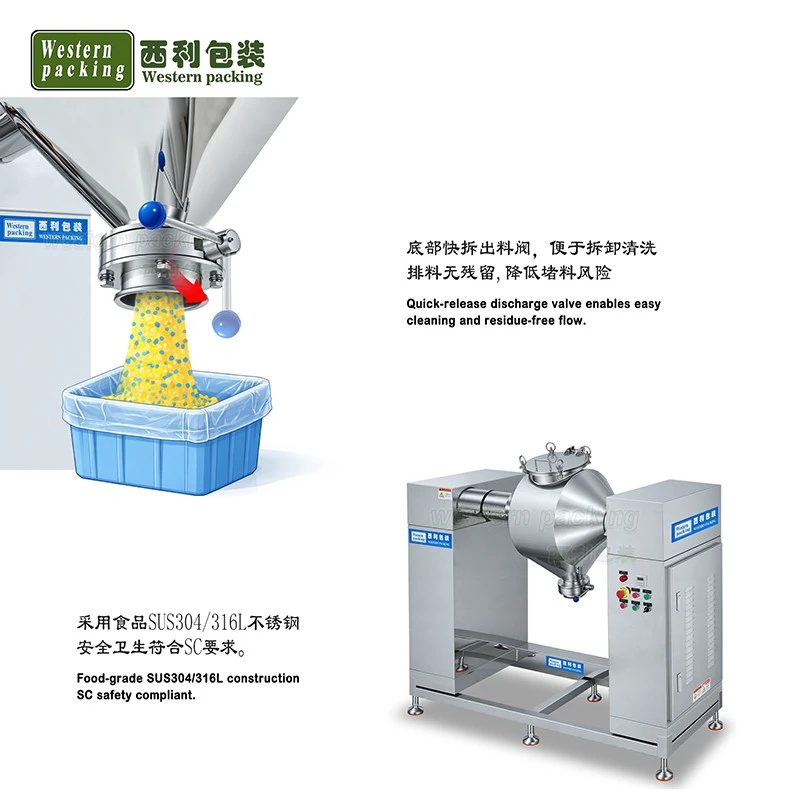

The cone blender mixing powder and grain have a discharge device is installed at the bottom outlet to enable rapid discharge after mixing.
03
The base structure enhances the overall stability of the equipment and reduces vibration during operation.
04
Hot Tags: cone blender mixing powder and grain, China cone blender mixing powder and grain manufacturers, suppliers, factory
MACHINE PARAMETERS
|
Name |
Cone Blender Mixing Powder And Grain |
|
Model |
WP-V-500 |
|
Max Capacity (kg) |
200 |
|
Rotor Speed (r.p.m) |
15 |
|
Motor Power(kw) |
1.5 |
|
Dimension(mm) |
1910*600*1600 |
|
Weight(kg) |
500 |
CONE BLENDER MIXING POWDER AND GRAIN

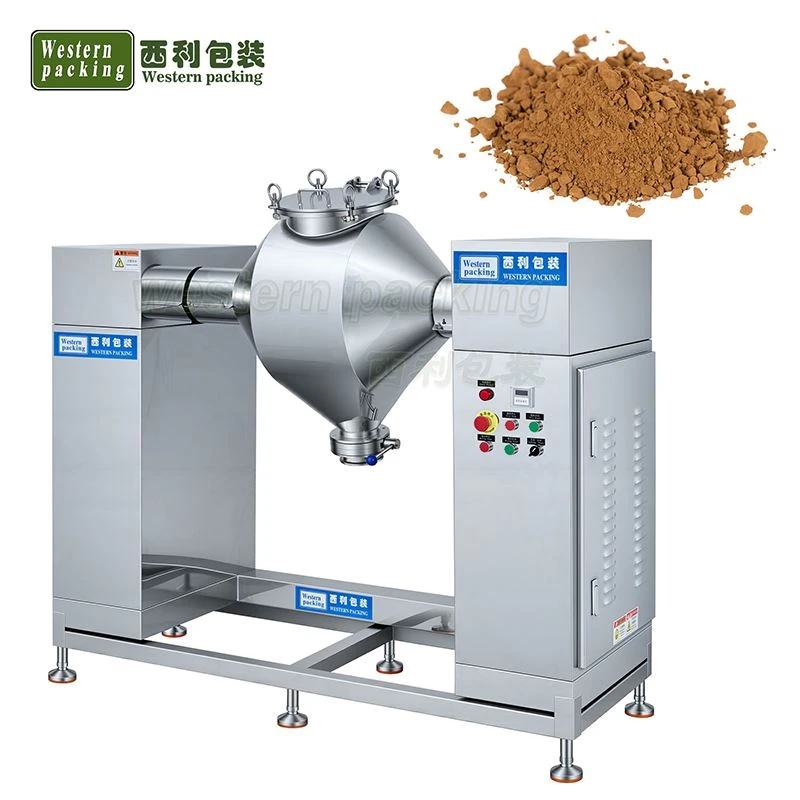

The cone blender mixing powder and grain uses two connected conical cylinders to form a rotating mixing chamber. During operation, the entire mixing chamber slowly rotates around a central axis, causing the material to continuously change position within.
Unlike mixing equipment with a stirring shaft, the double cone mixer primarily relies on the material movement generated by the rotation of the container to achieve mixing, eliminating the need for high-speed stirring components. Therefore, its internal structure is simpler. For products requiring the preservation of particle integrity and avoidance of excessive shearing, this structure provides a gentler mixing effect.
WORKING PRINCIPLE

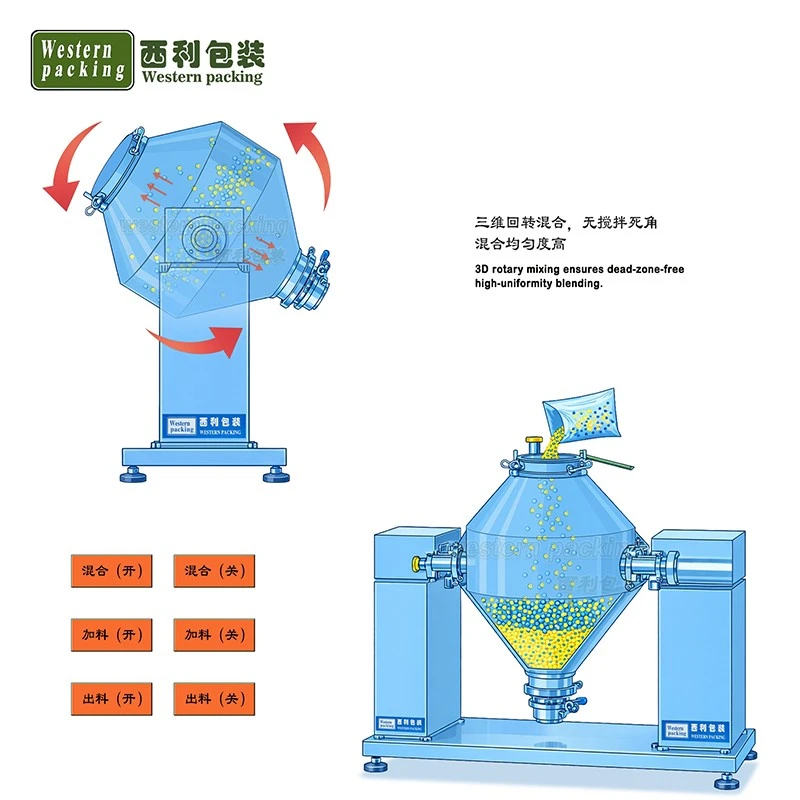

After the equipment is started, the drive system rotates the double-cone cylinder according to the set parameters. As the cylinder rotates, the material near the cylinder wall is lifted.
When the material reaches a certain height, it slides down under its own gravity and mixes with the material in other areas.
Because the double-cone structure constantly changes the concentration position of the material, the internal powders or particles repeatedly stratify, diffuse, and recombine, gradually bringing the different components together.
After mixing is complete, the cylinder stops rotating, and the operator opens the discharge device, allowing the mixed material to proceed to the next production step.
